STANDARD DETAILS INDEX
|
Drawing Number |
Drawing Title |
|---|---|
|
199 |

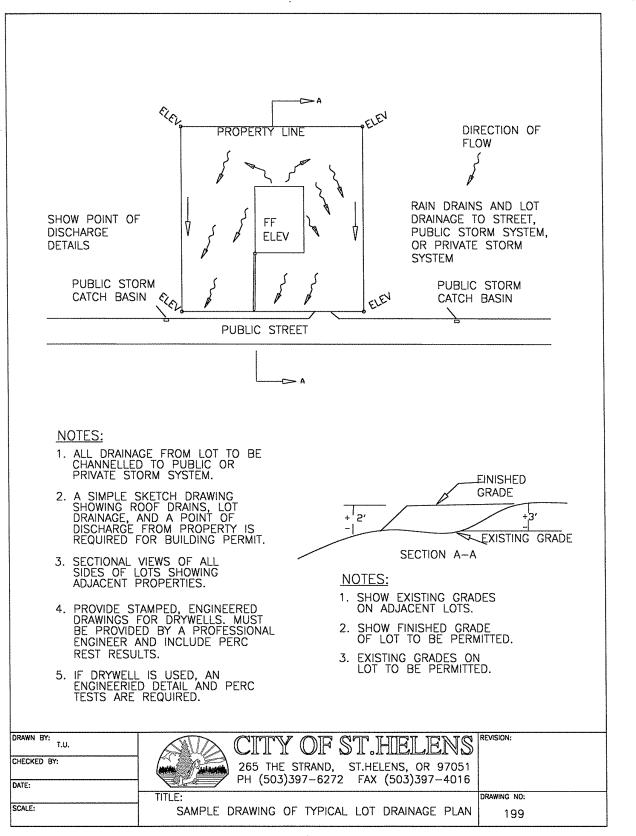

Sample Drawing of Typical Lot Drainage Plan |
|
200 |

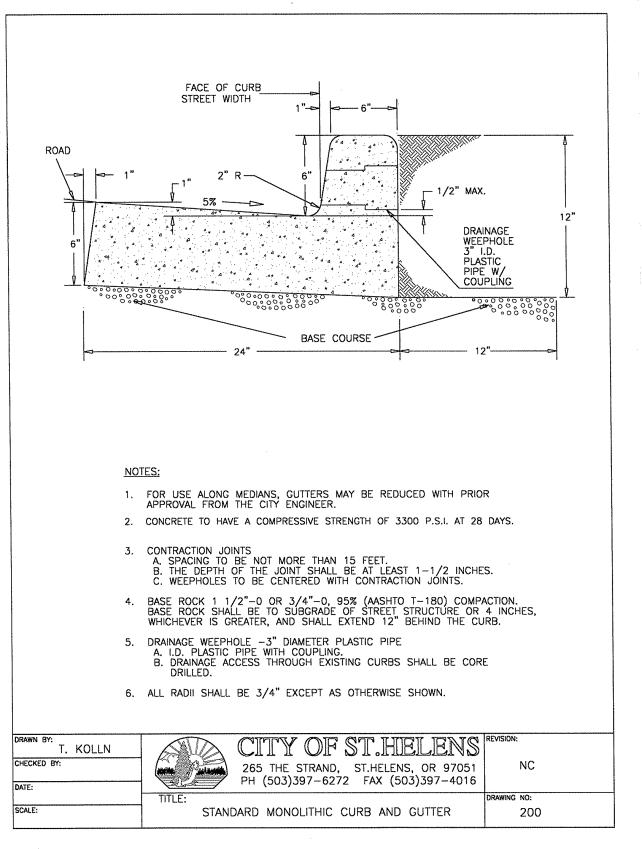

Standard Monolithic Curb and Gutter |
|
205 |

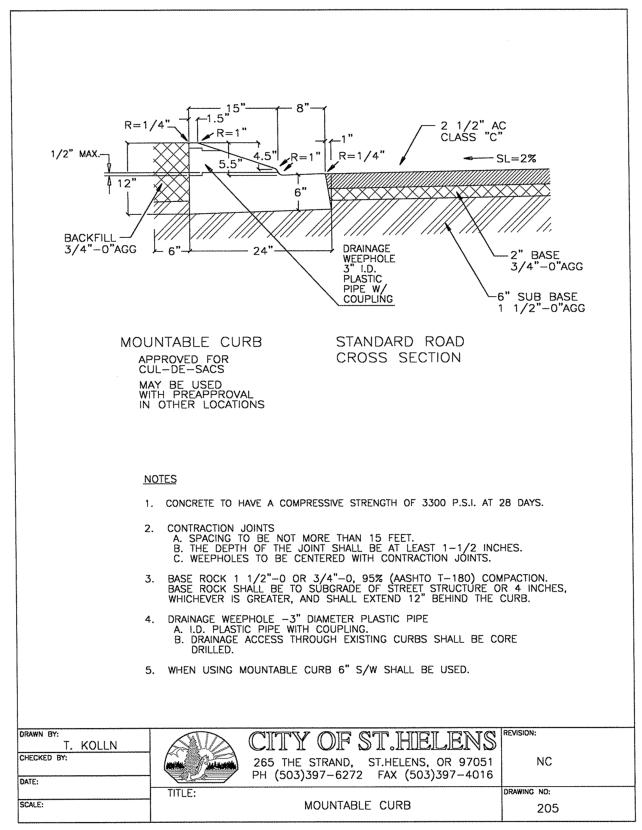

Mountable Curb |
|
210 |

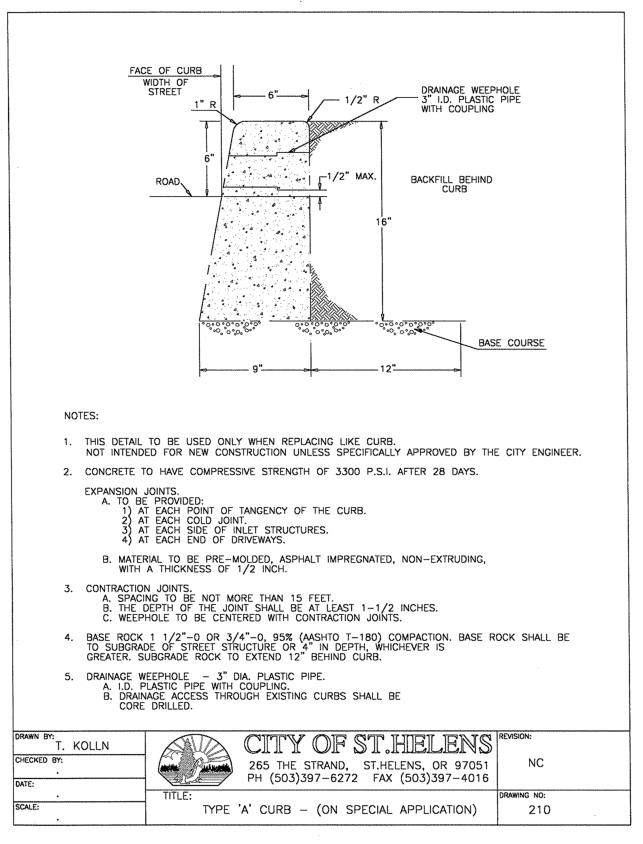

Type ‘A’ Curb – (On Special Application) |
|
215 |

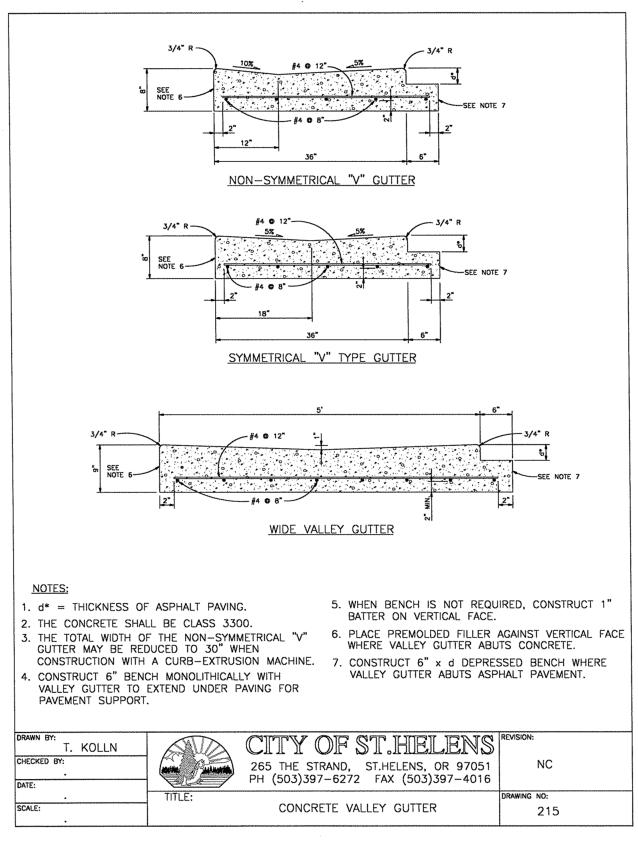

Concrete Valley Gutter |
|

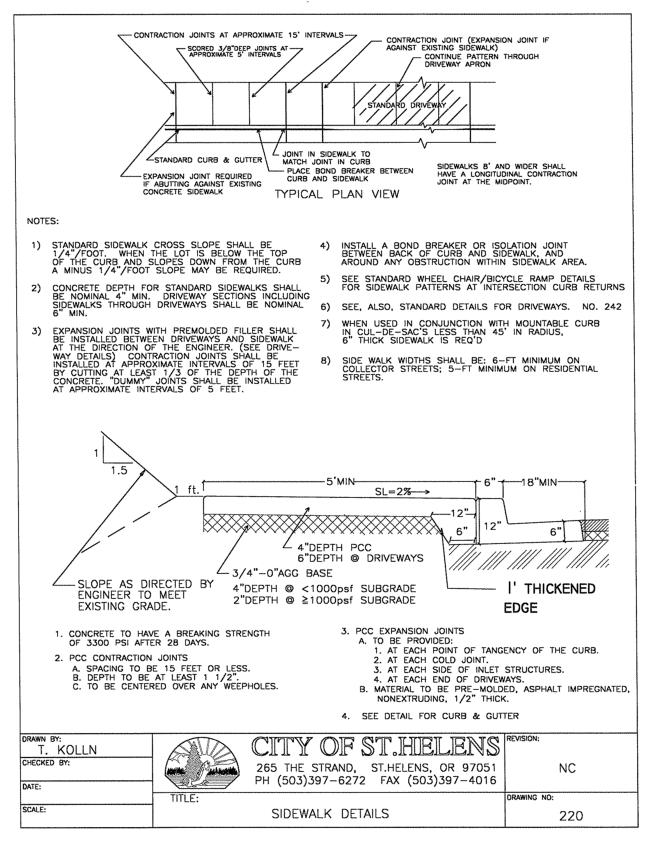

220 |
Sidewalk Details |
|

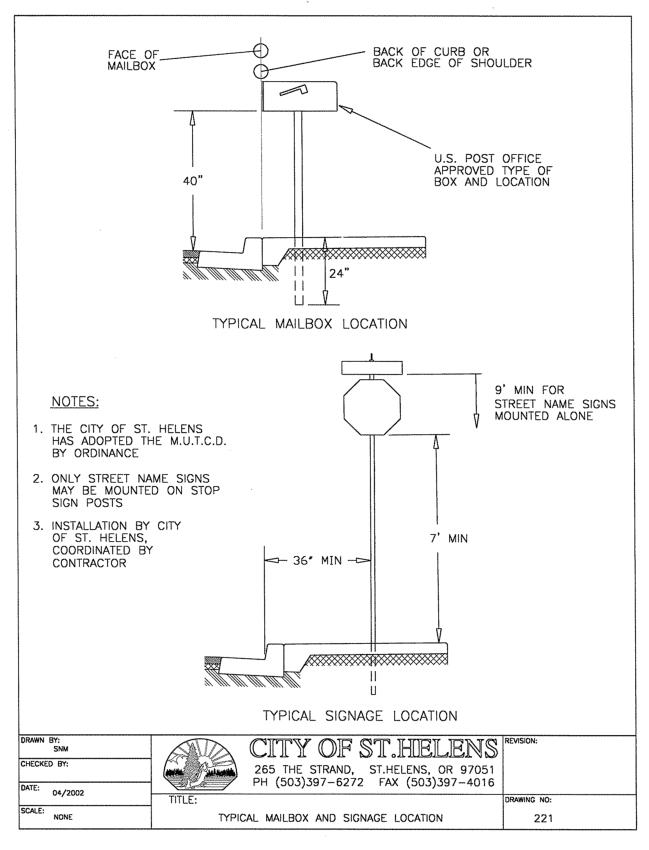

221 |
Typical Mailbox and Signage Location |
|
225 |

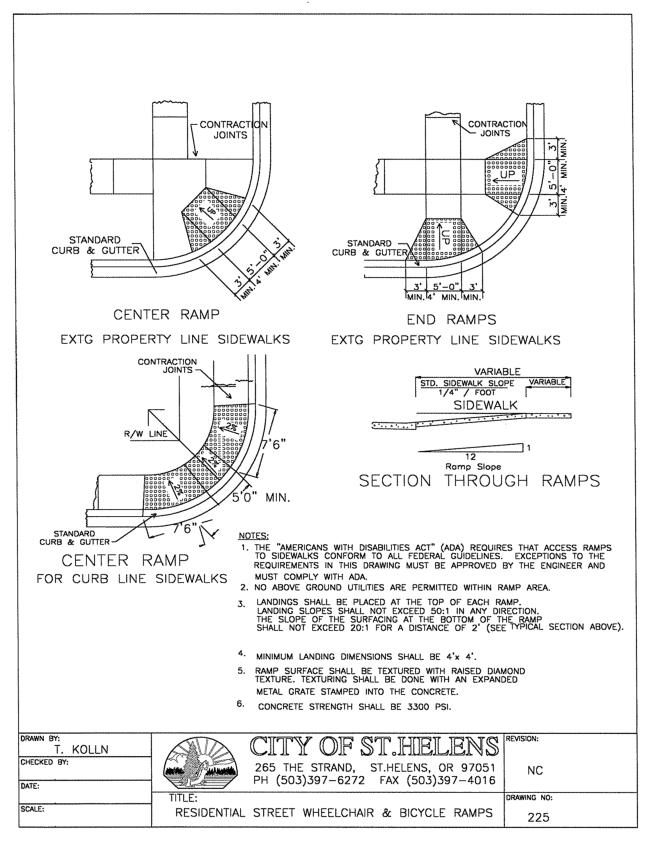

Residential Street Wheelchair and Bicycle Ramps |
|

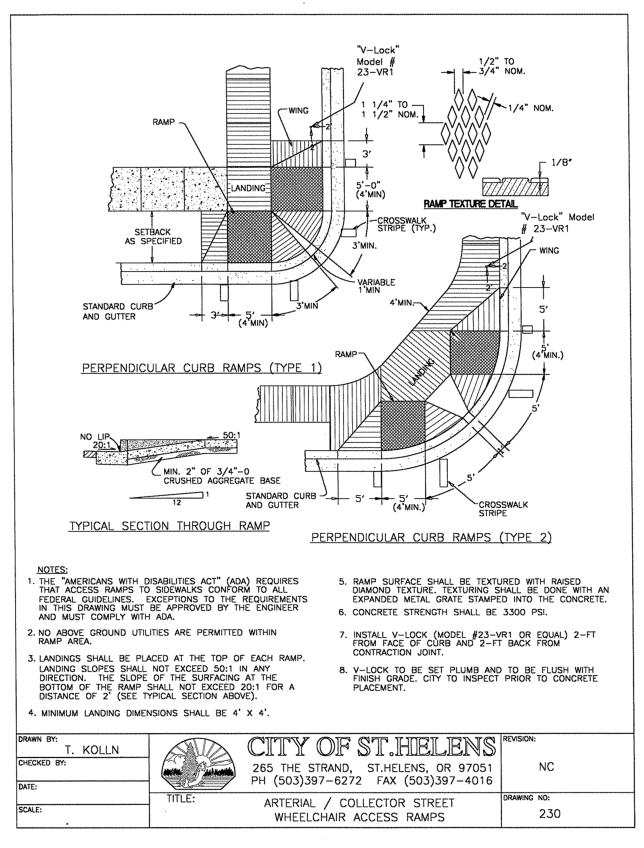

230 |
Arterial/Collector Street Wheelchair Access Ramps |
|
235 |

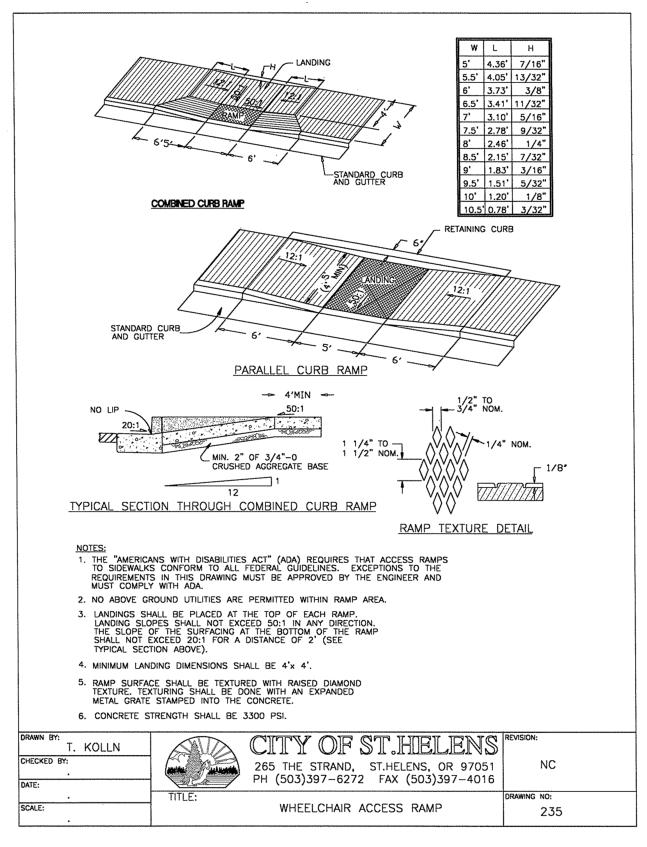

Wheelchair Access Ramp |
|
245 |

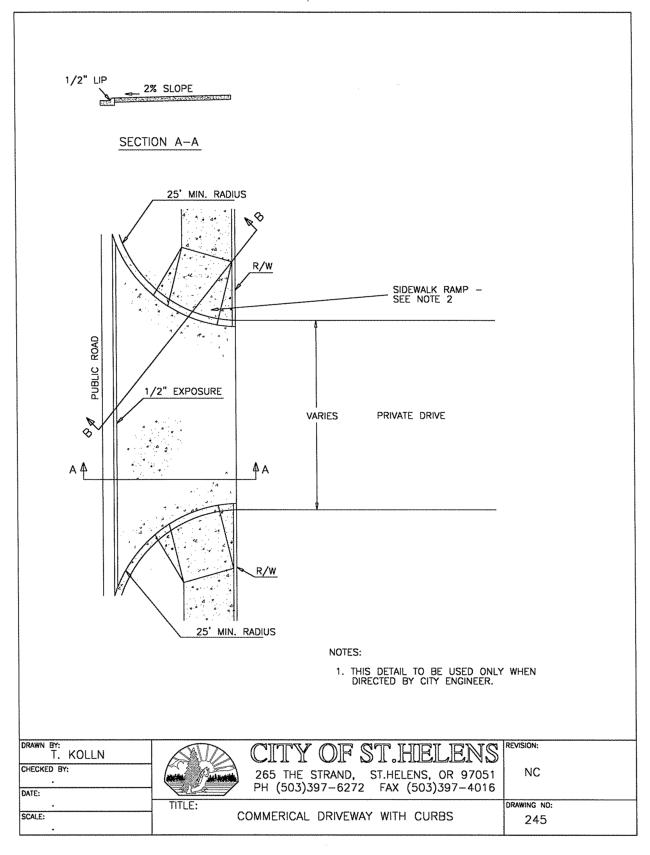

Commercial Driveway with Curbs |
|
250 |

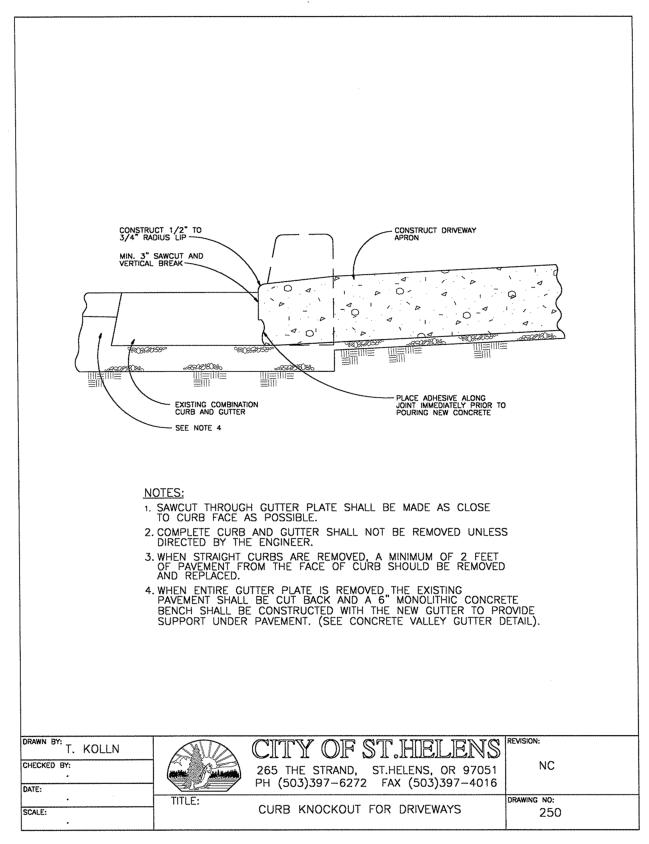

Curb Knockout for Driveways |
|

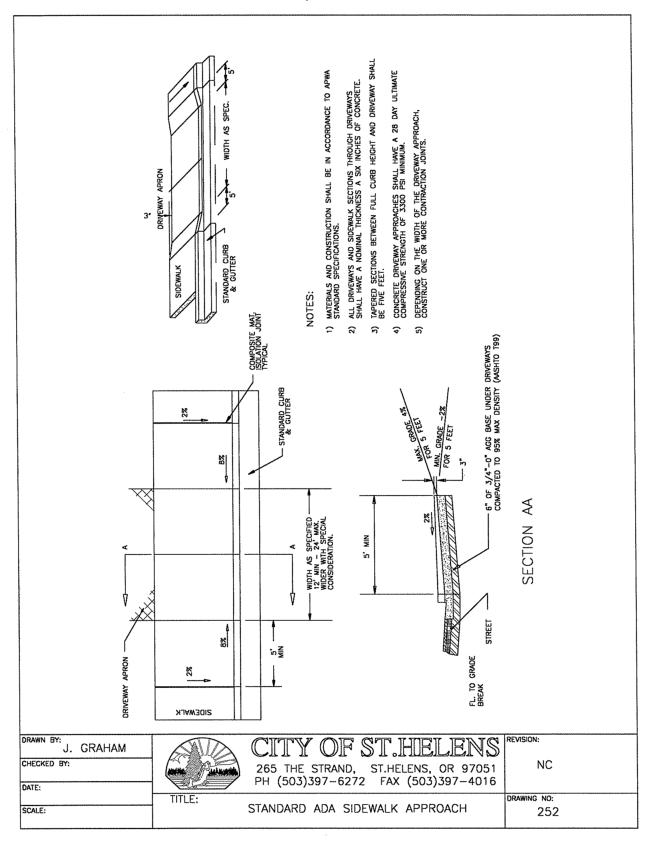

252 |
Standard ADA Sidewalk Approach |
|

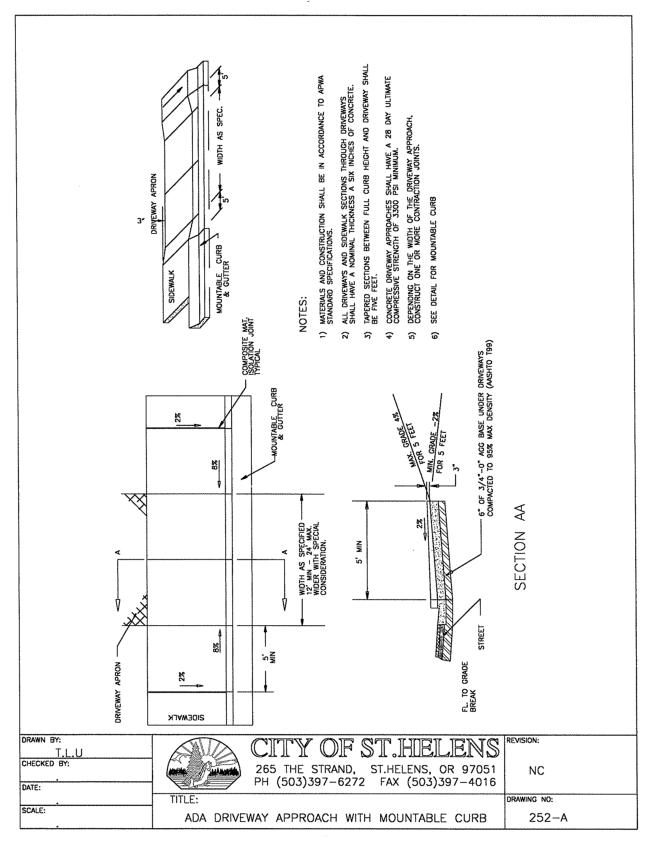

252-A |
ADA Driveway Approach with Mountable Curb |
|
255 |
Sidewalk Details: Obstructions and Protruding Objects |
|
Drawing Number |
Drawing Title |
|---|---|
|
256 |

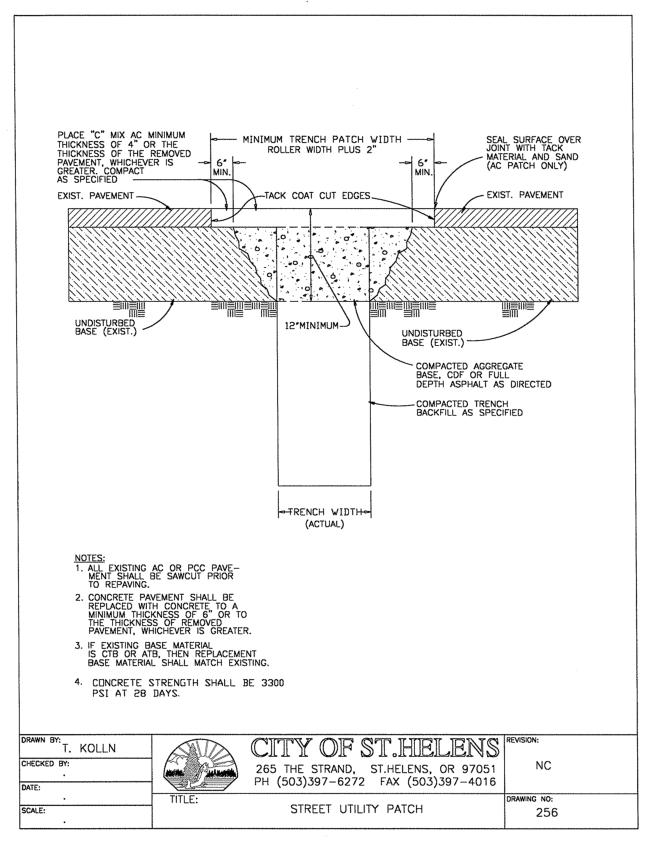

Street Utility Patch |
|
260 |

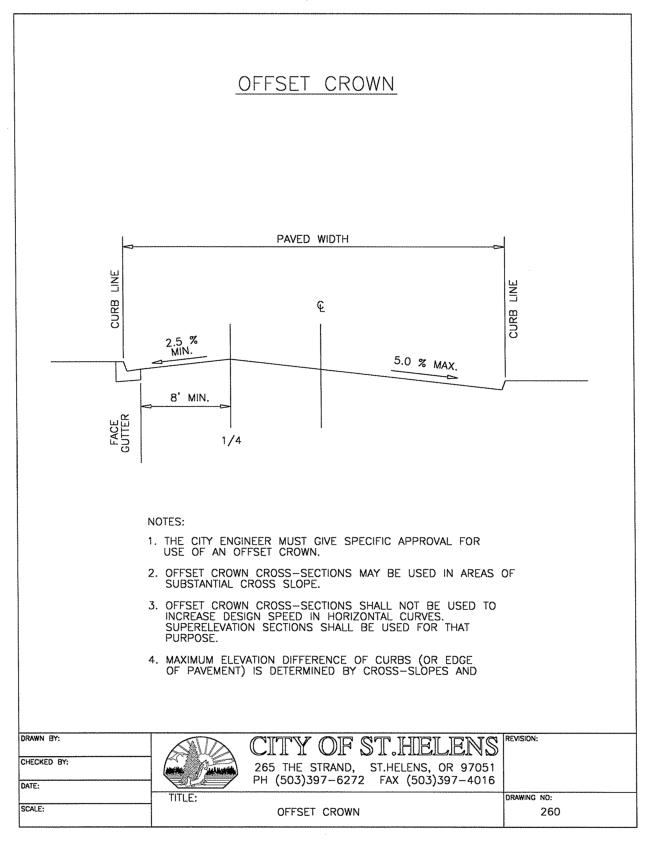

Offset Crown |
|
265 |

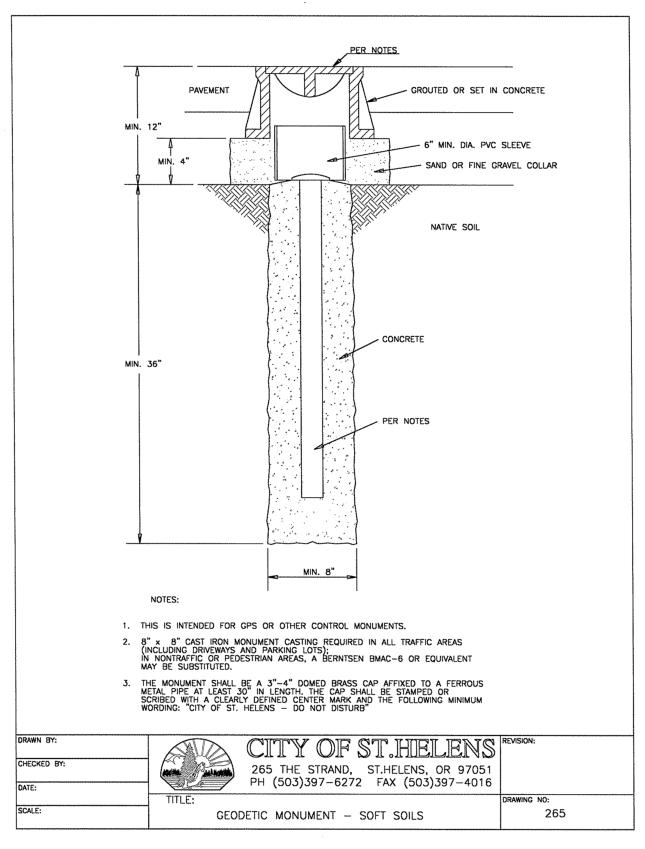

Geodetic Monument – Soft Soils |
|
266 |

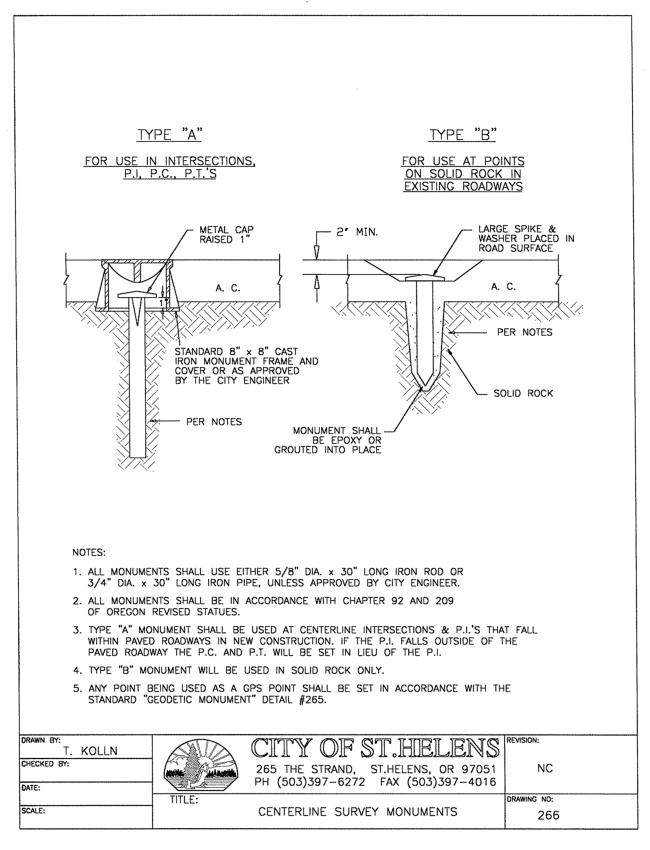

Centerline Survey Monuments |
|

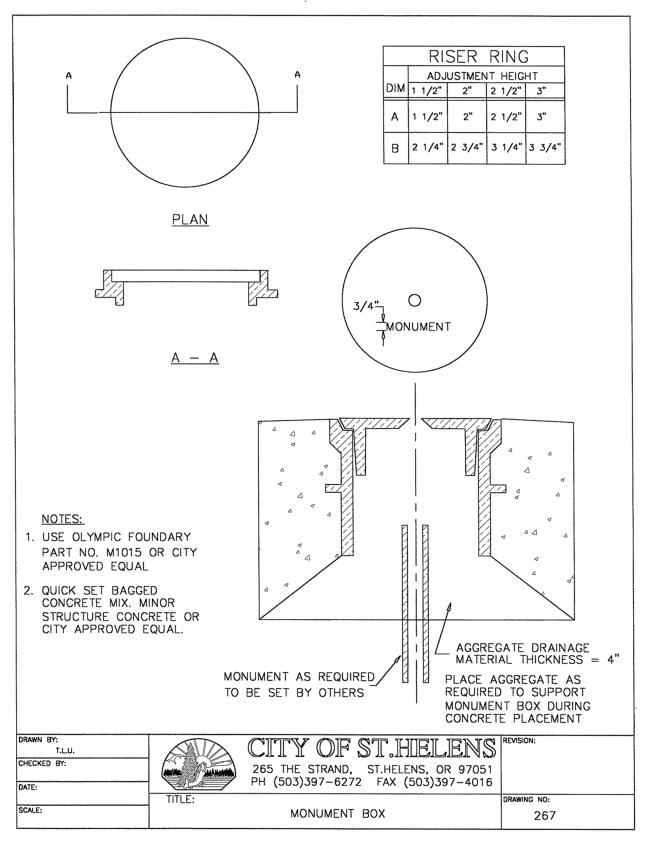

267 |
Monument Box |
|
284 |

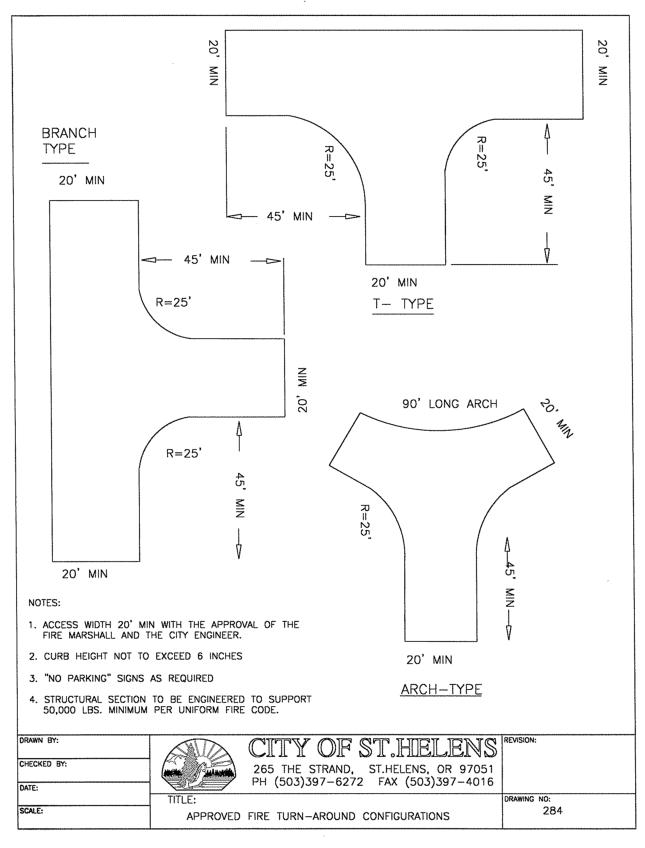

Approved Fire Turn-Around Configurations |
|
286 |

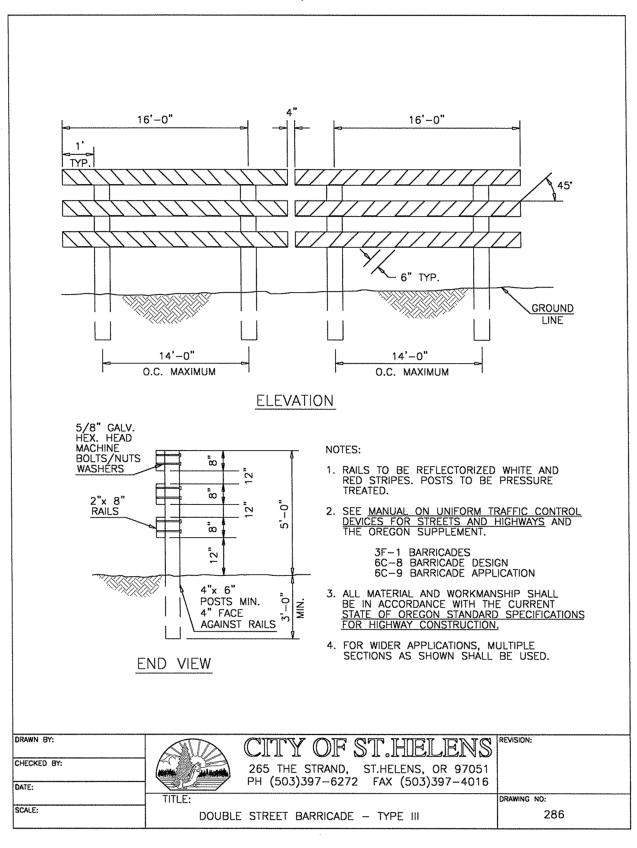

Double Street Barricade – Type III |
|

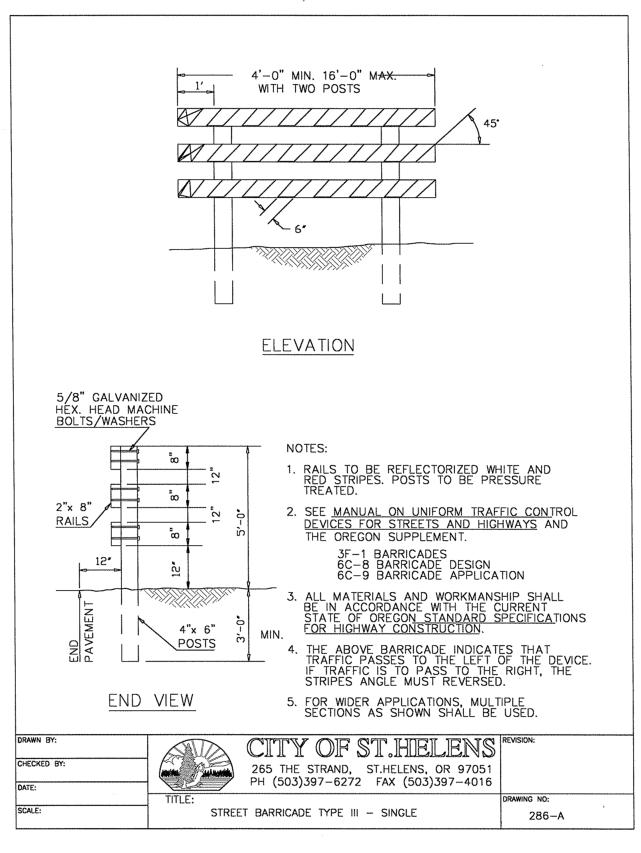

286-A |
Single Street Barricade – Type III |
|
Drawing Number |
Drawing Title |
|---|---|
|
295 |

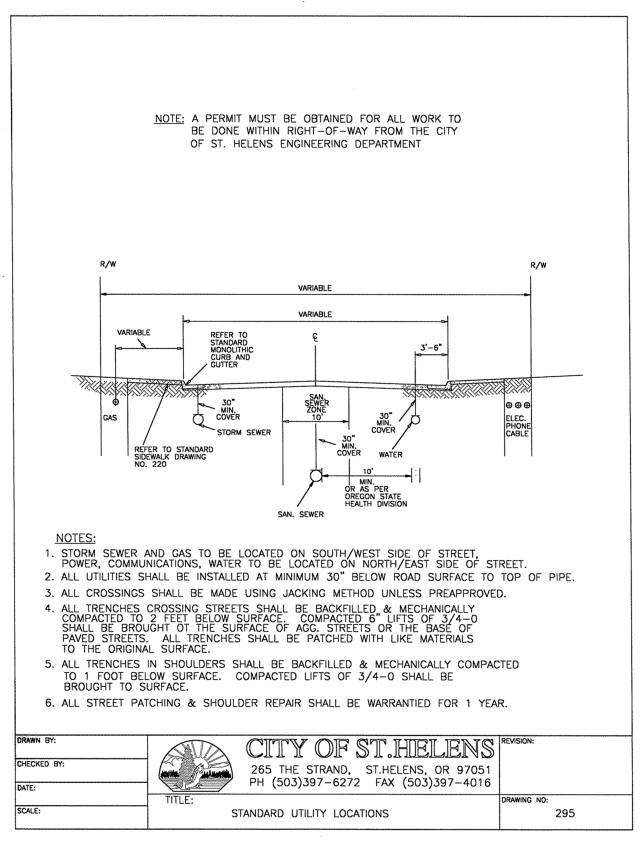

Standard Utility Locations |
|
300 |

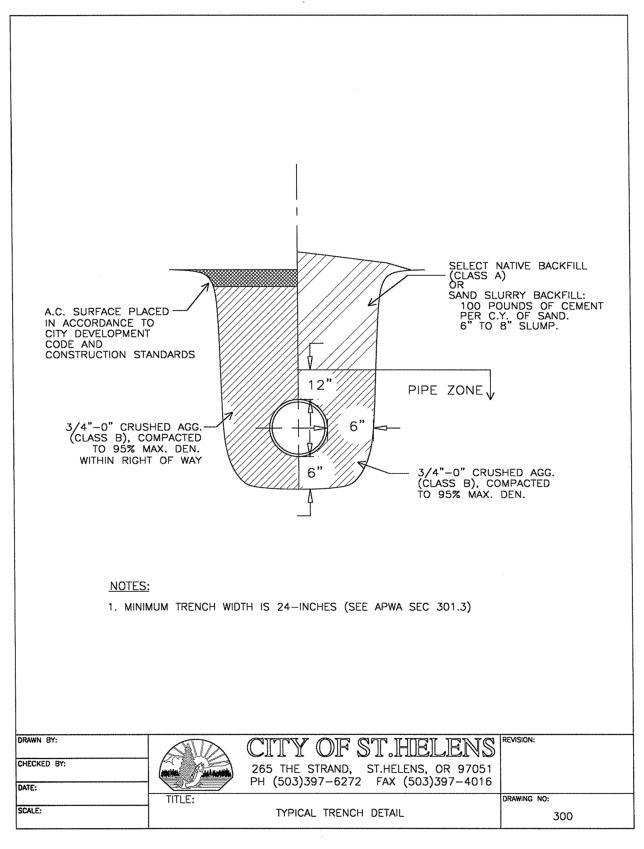

Typical Trench Detail |
|

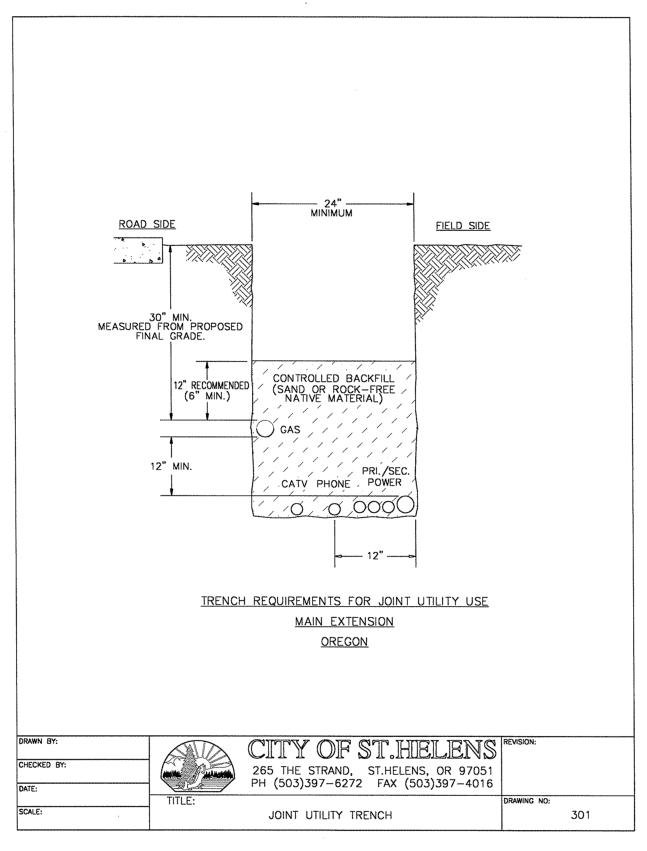

301 |
Joint Utility Trench |
|
305 |

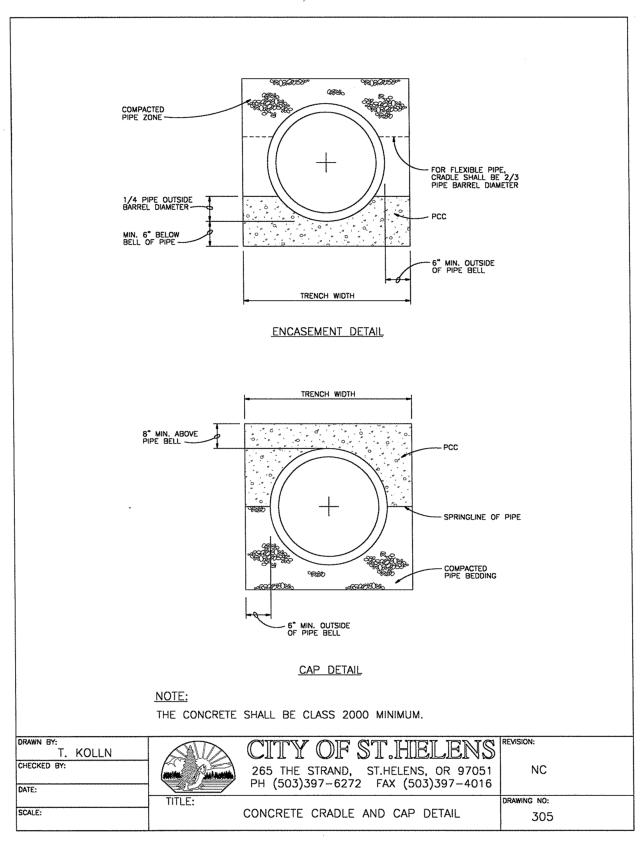

Concrete Cradle and Cap Detail |
|
310 |

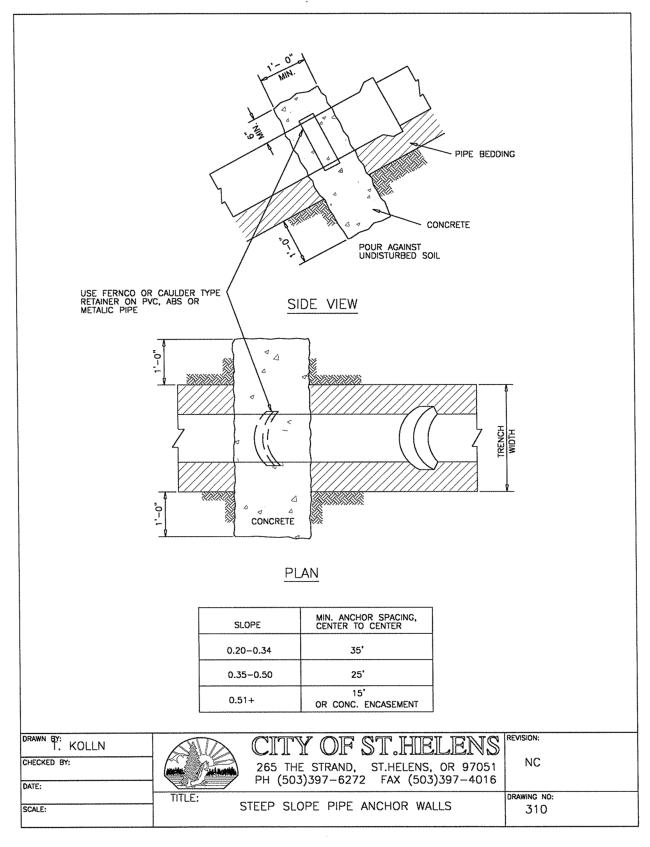

Steep Slope Pipe Anchor Walls |
|
Drawing Number |
Drawing Title |
|---|---|
|
315 |

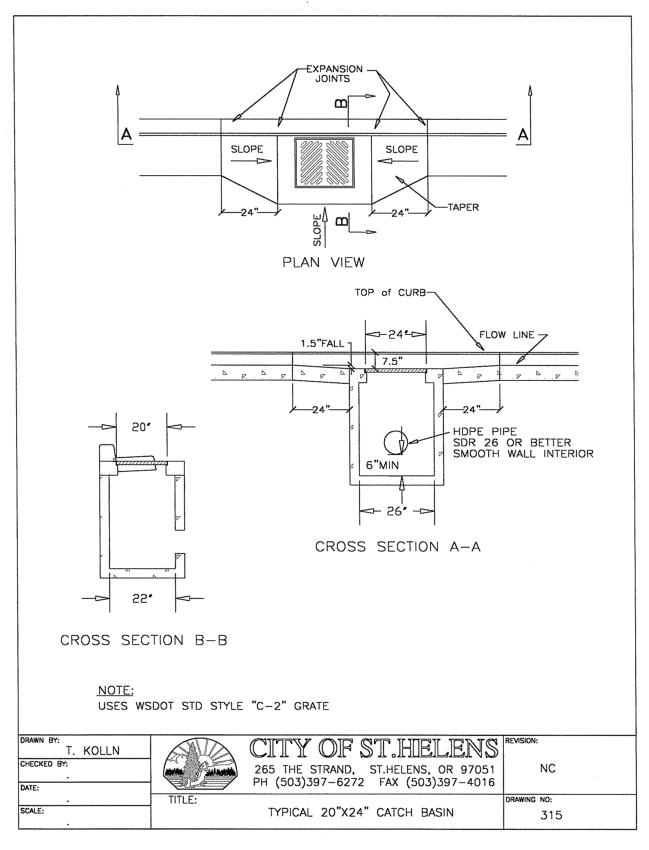

Typical 20″ x 24″ Catch Basin |
|
325 |

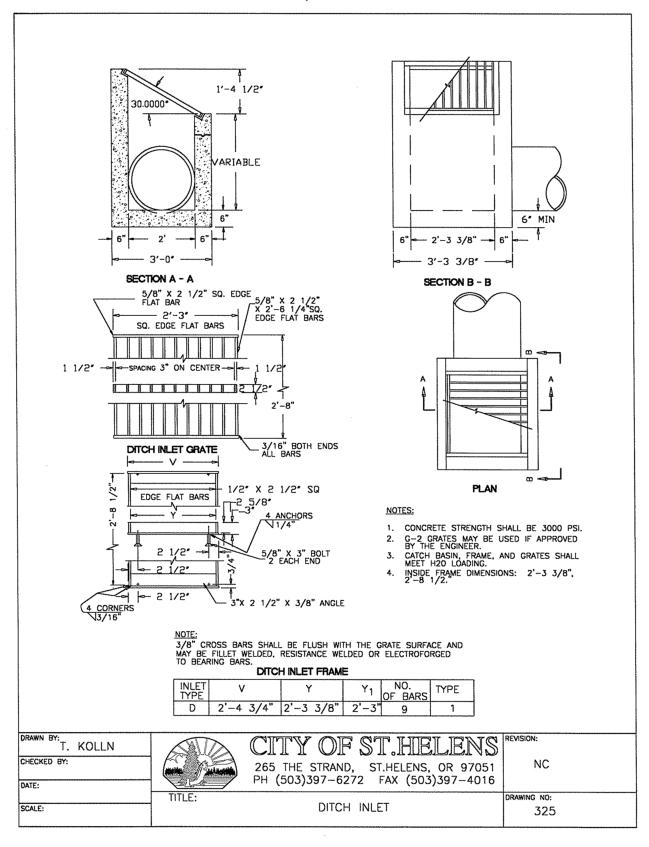

Ditch Inlet |
|

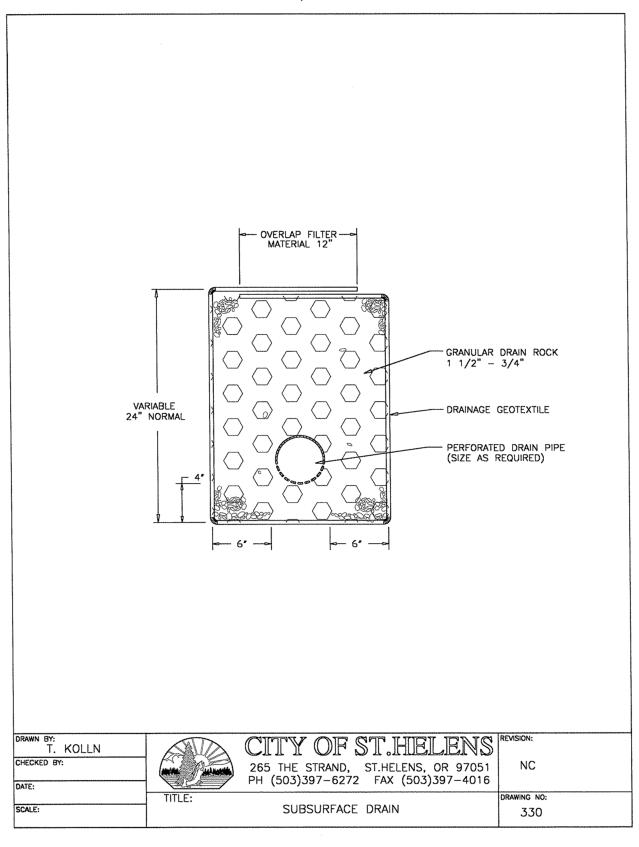

330 |
Subsurface Drain |
|
331 |

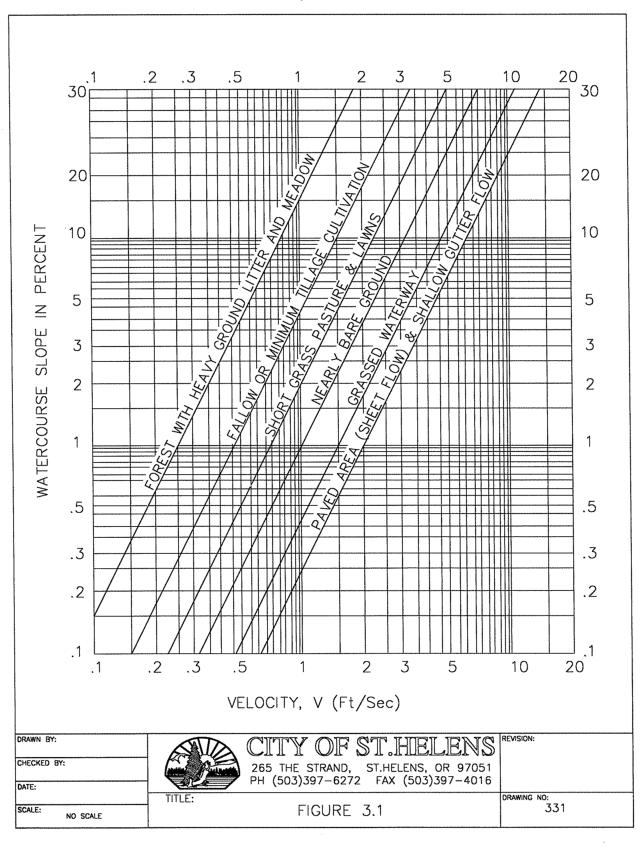

Figure 3.1 – Average Velocity |
|
Drawing Number |
Drawing Title |
|---|---|
|
335 |
Shallow Trench Service Connection, Blocking, and Marking |
|
336 |

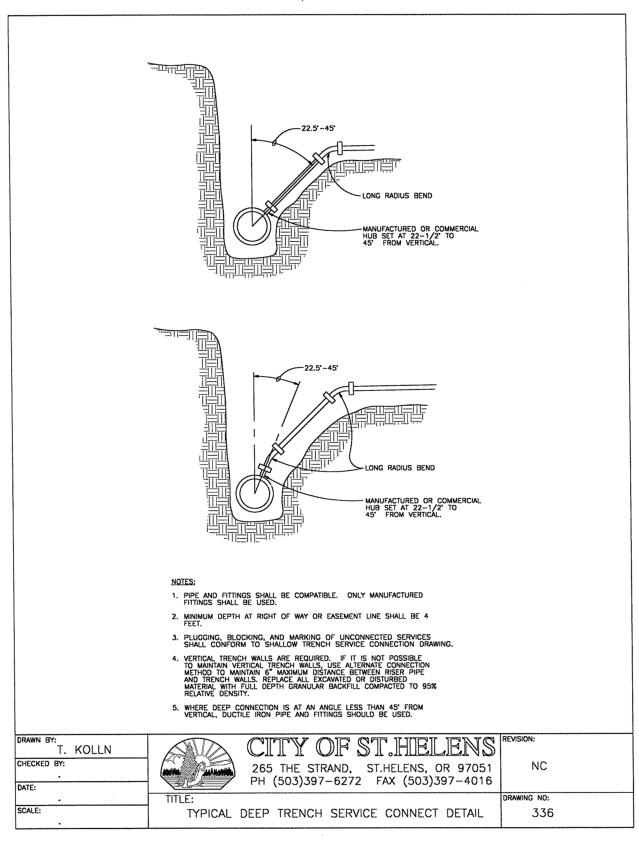

Typical Deep Trench Service Connect Detail |
|
340 |

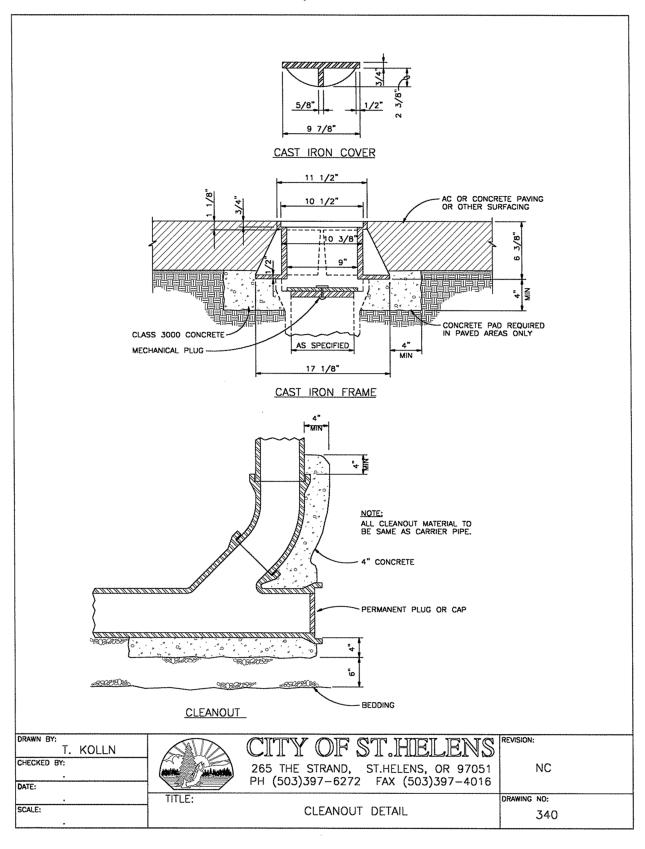

Cleanout Detail |
|
Drawing Number |
Drawing Title |
|---|---|
|
345 |

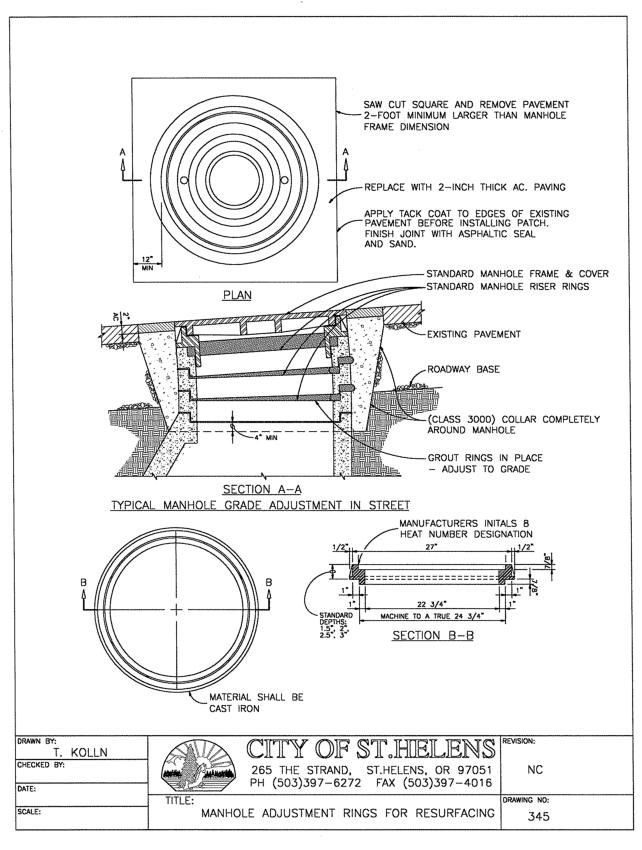

Manhole Adjustment Rings for Resurfacing |
|

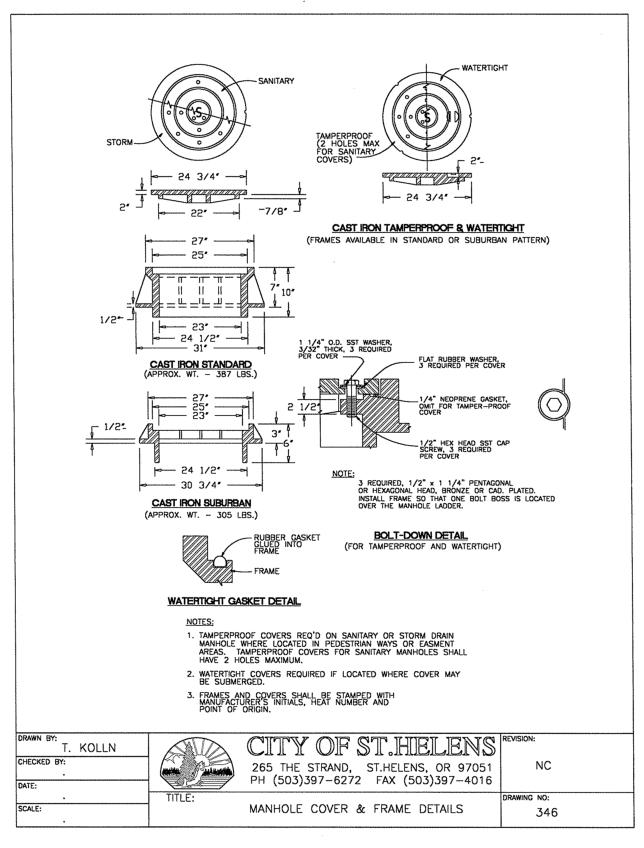

346 |
Manhole Cover and Frame Details |
|
347 |

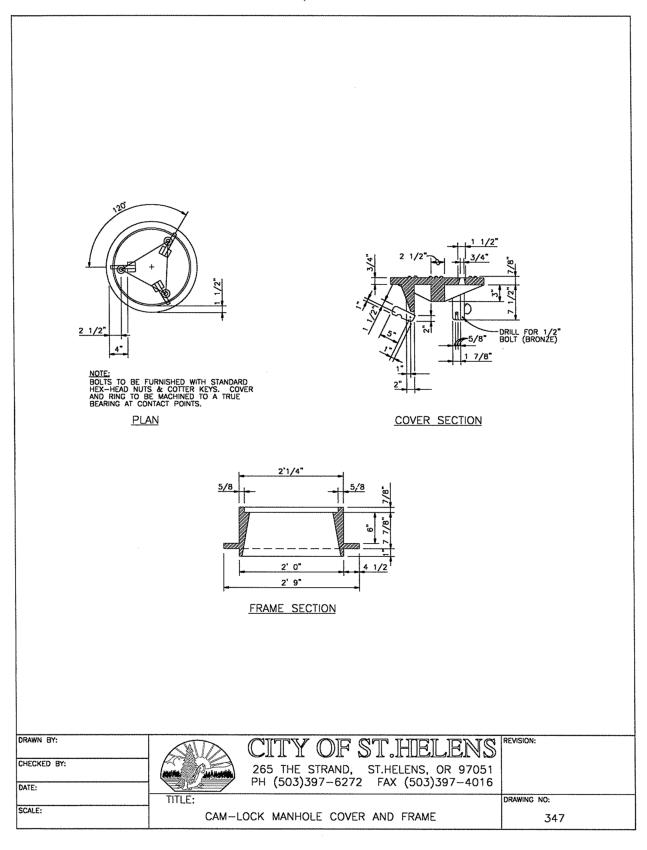

Cam-Lock Manhole Cover and Frame |
|
350 |

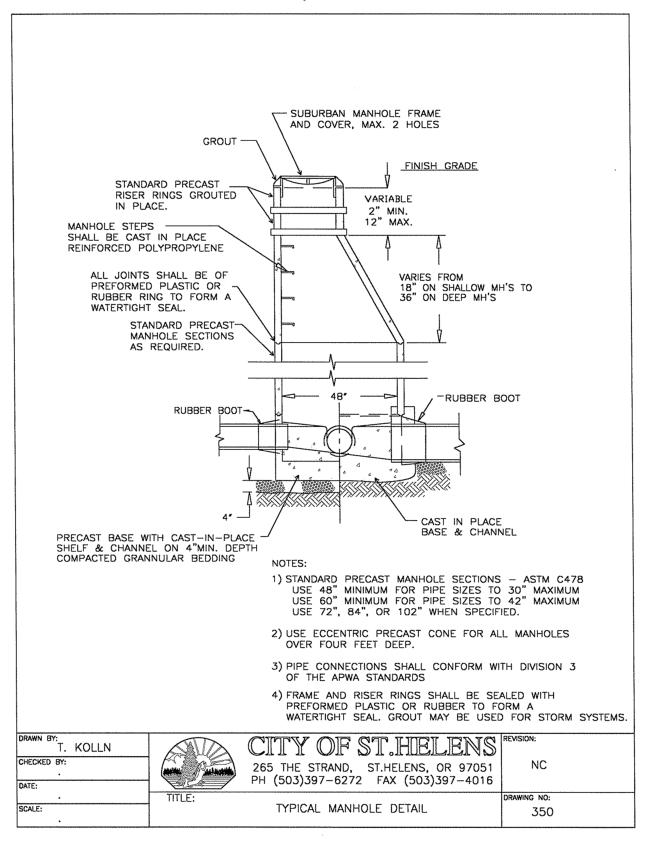

Typical Manhole Detail |
|

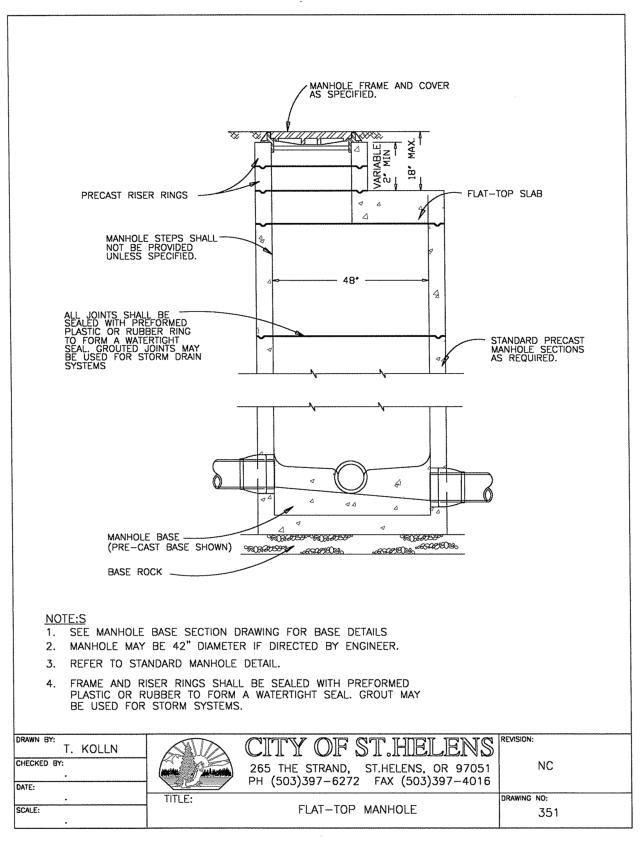

351 |
Flat-Top Manhole |
|
352 |

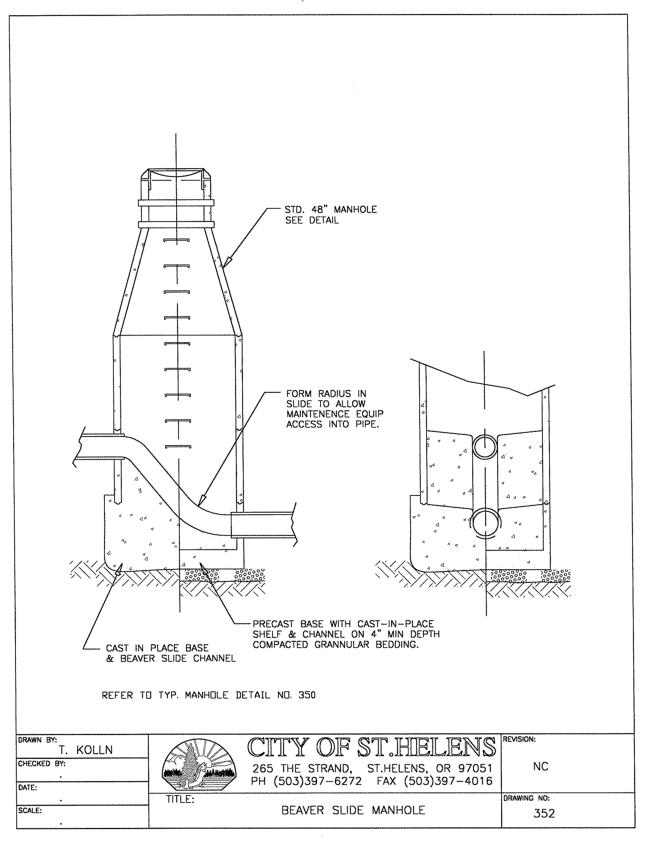

Beaver Slide Manhole |
|
353 |

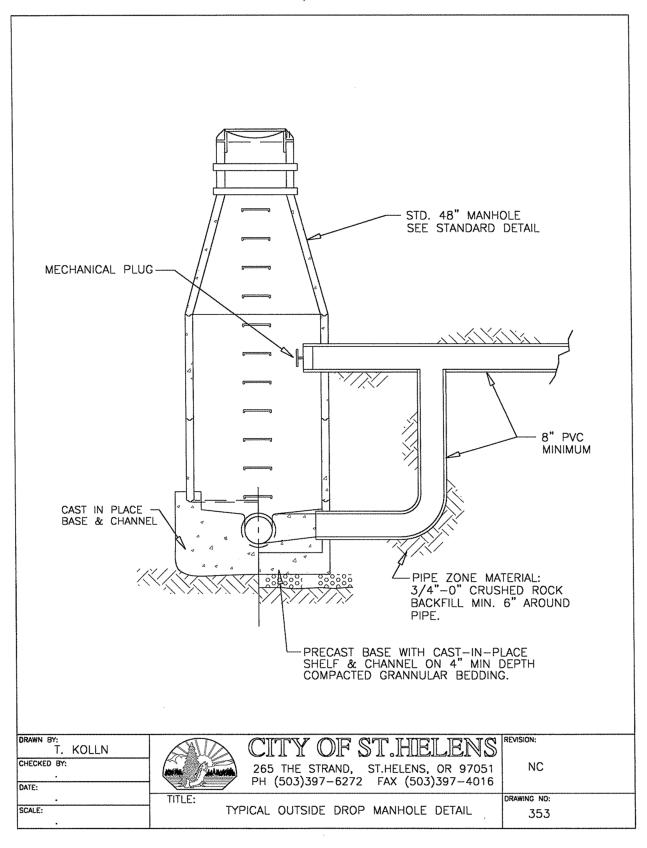

Typical Outside Drop Manhole Detail |
|
354 |

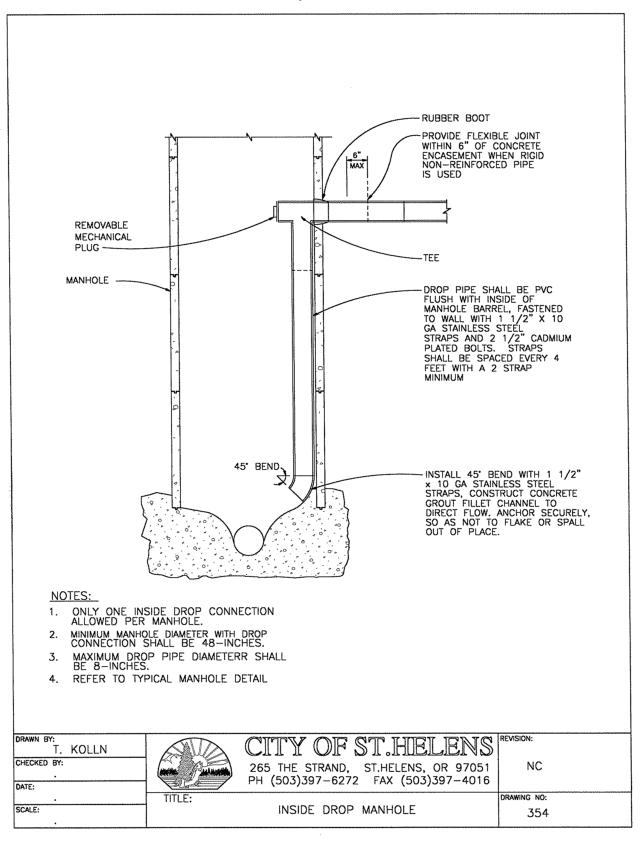

Inside Drop Manhole |
|
355 |
Pollution Control Manhole Inside Elbow |
|

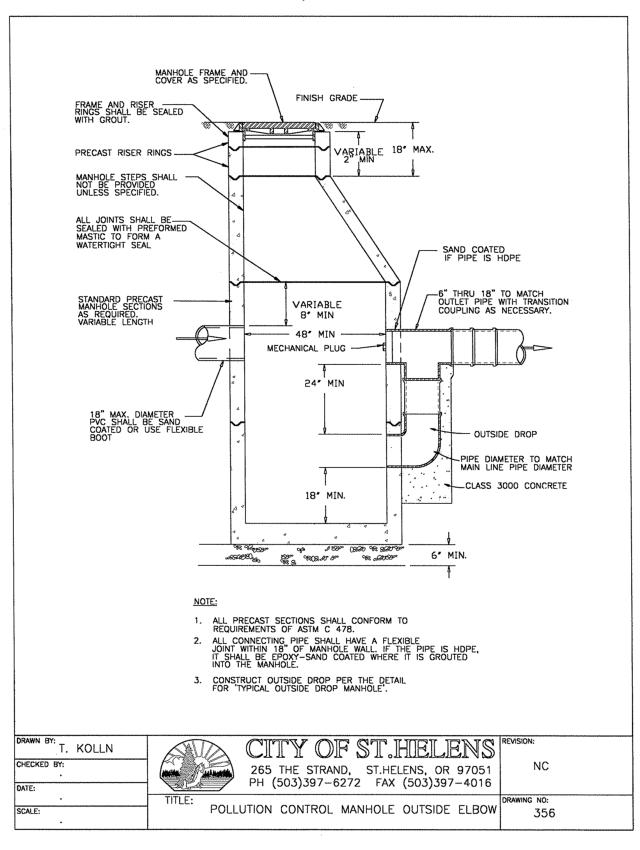

356 |
Pollution Control Manhole Outside Elbow |
|
360 |

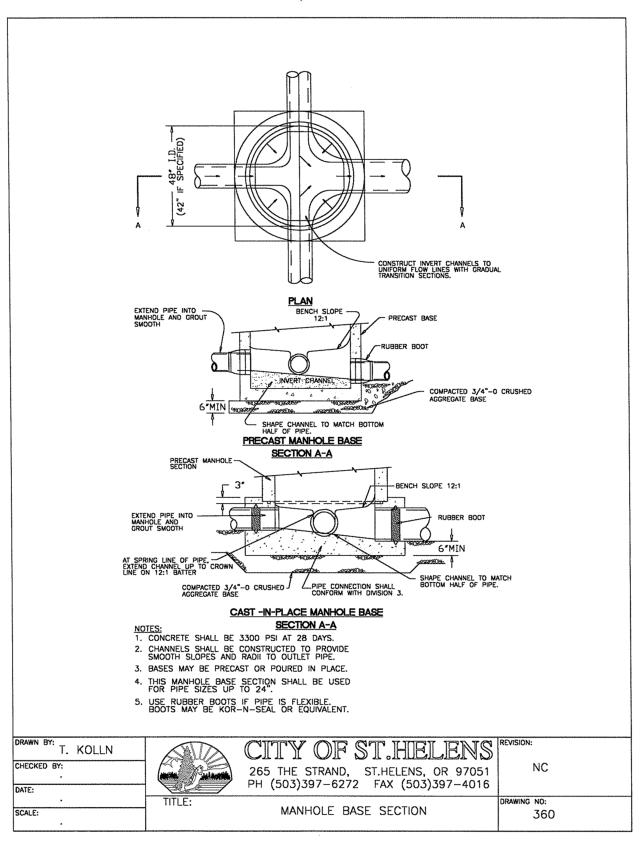

Manhole Base Section |
|
361 |

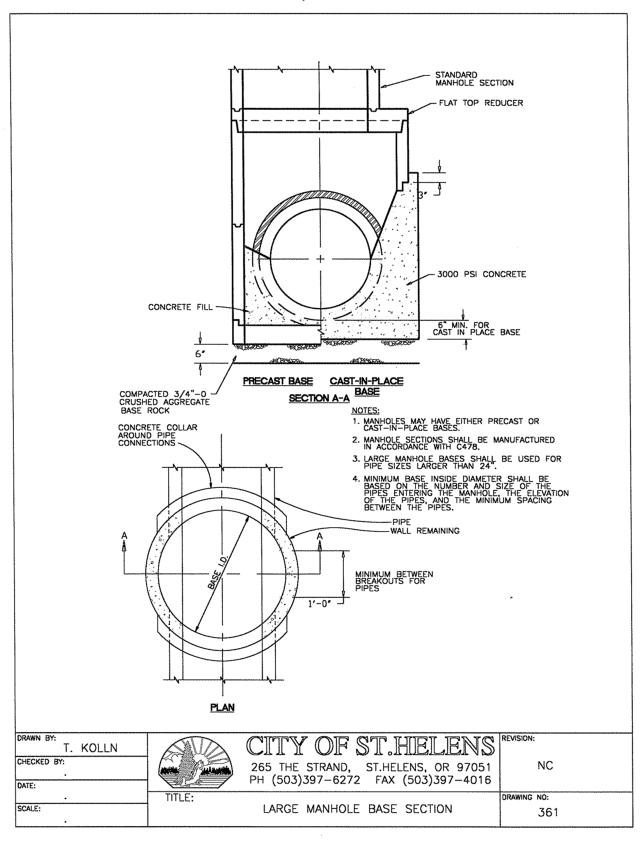

Large Manhole Base Section |
|
362 |

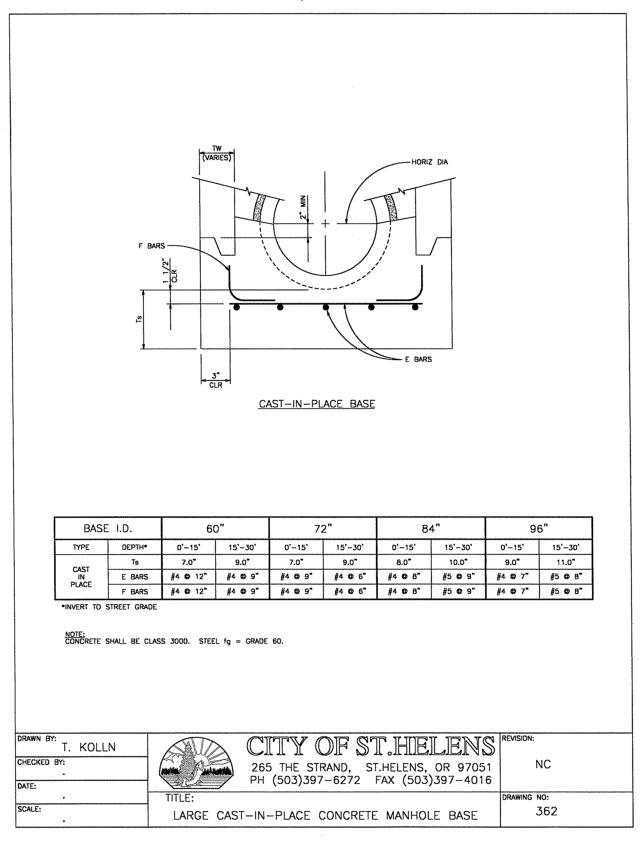

Large Cast-in-Place Concrete Manhole Base |
|
Drawing Number |
Drawing Title |
|---|---|
|
400 |

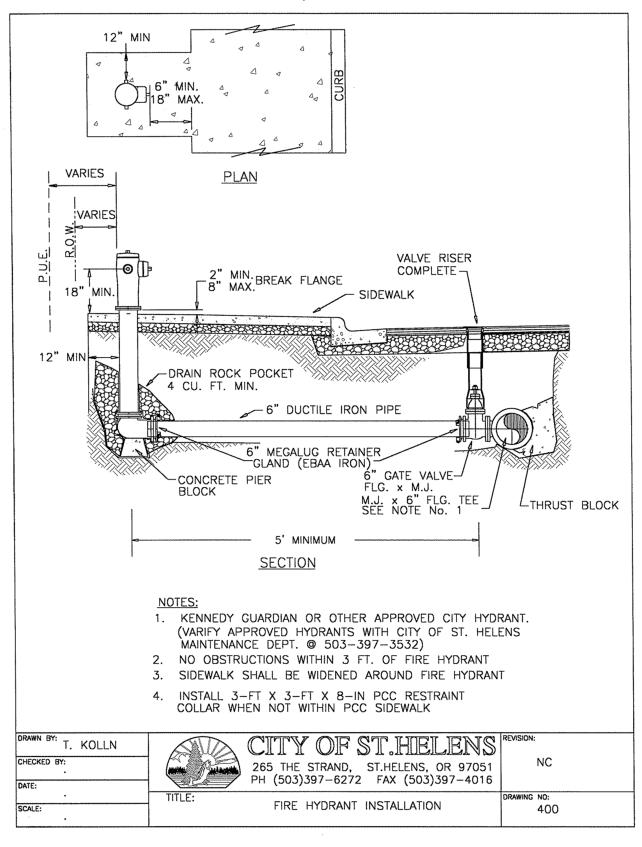

Fire Hydrant Installation |
|

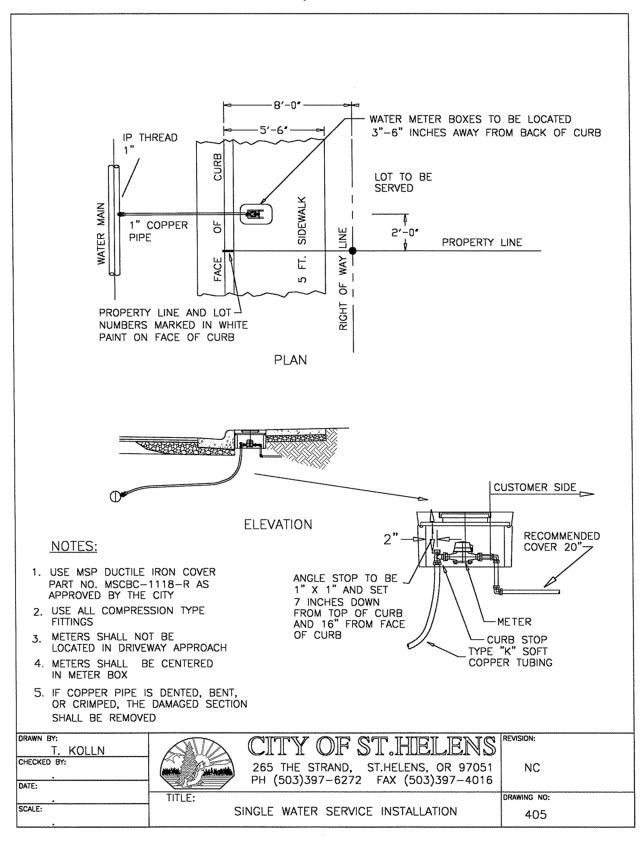

405 |
Single Water Service Installation |
|
406 |
Brooks 12″ x 20″ Meter Box for 1″ Water Meter |
|
410 |

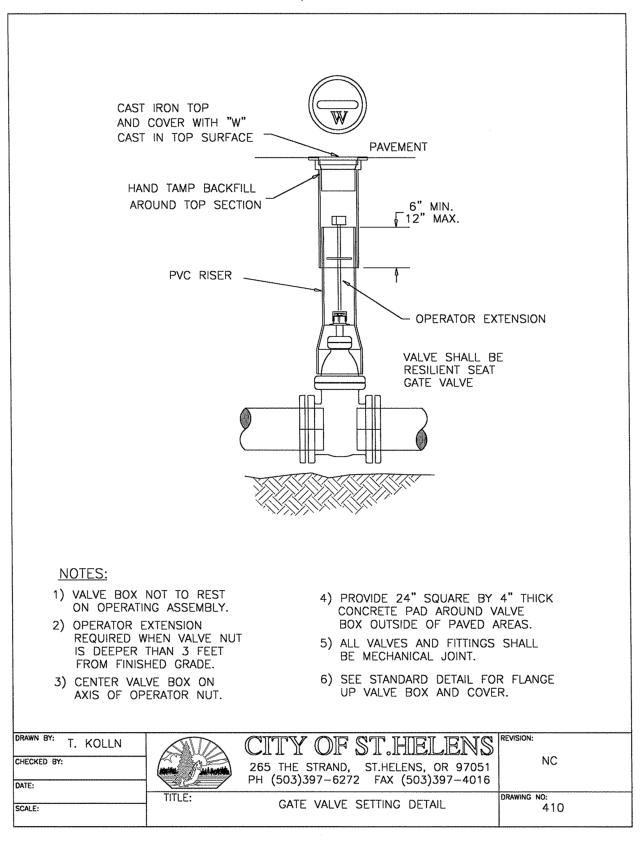

Gate Valve Setting Detail |
|
411 |

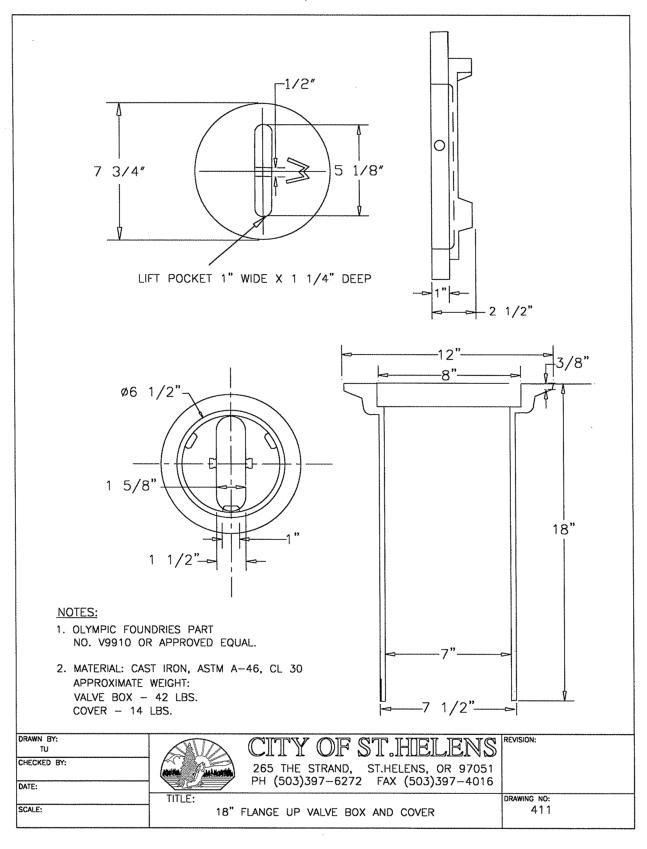

18″ Flange Up Valve Box and Cover |
|

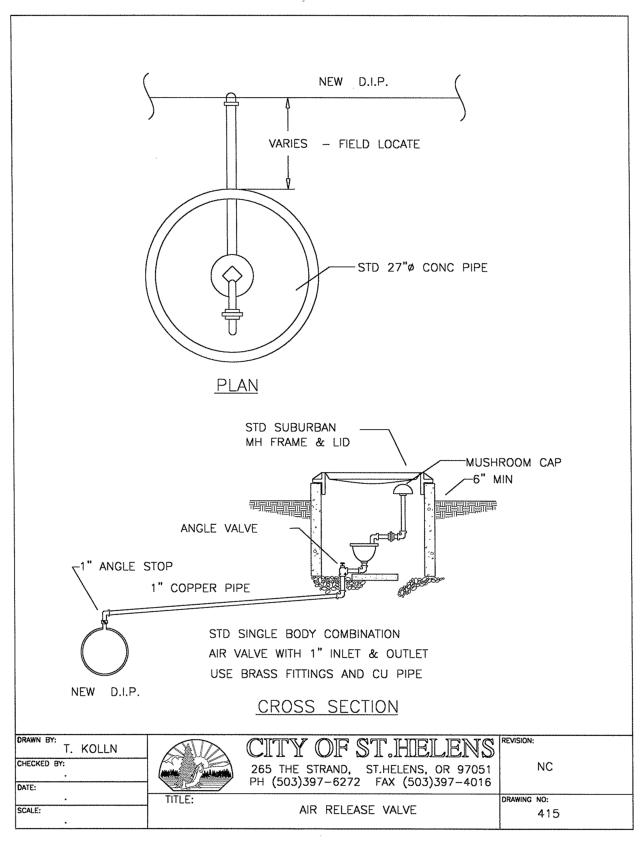

415 |
Air Release Valve |
|

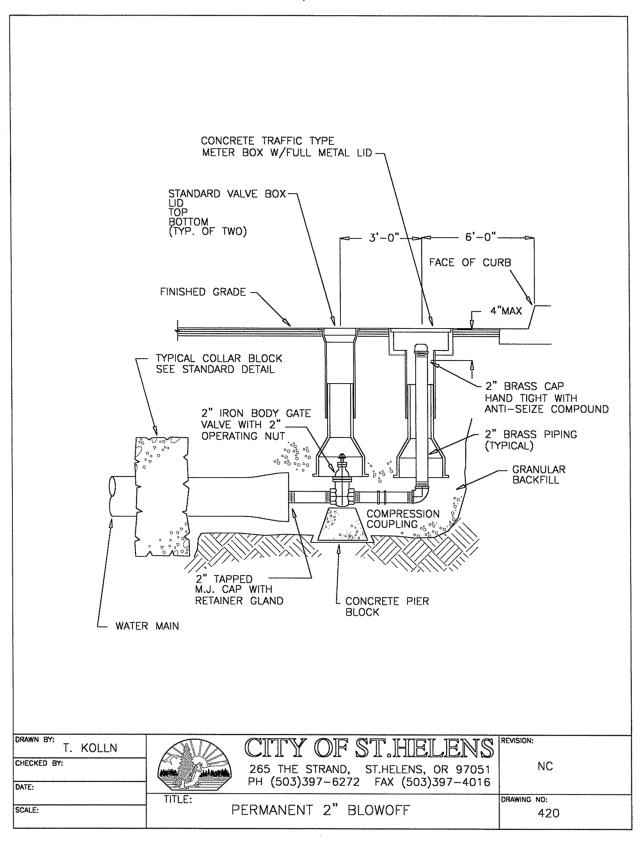

420 |
Permanent 2″ Blowoff |
|

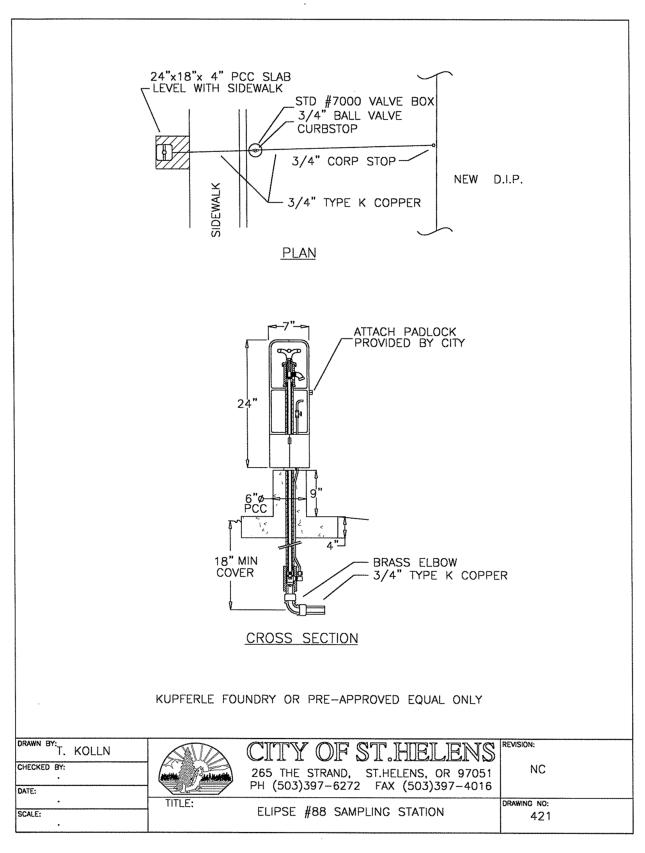

421 |
Elipse # 88 Sampling Station |
|
422 |

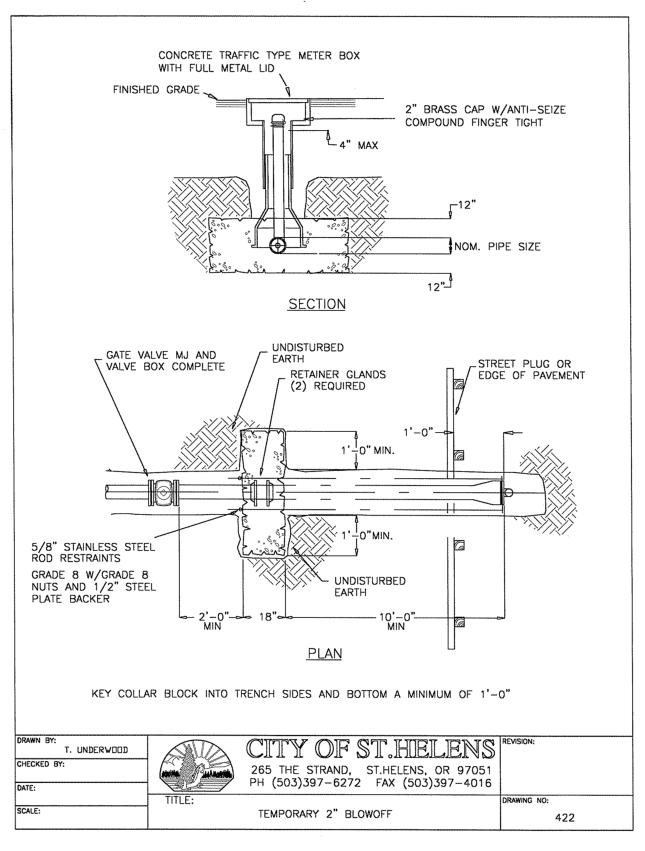

Temporary 2″ Blowoff |
|
425 |

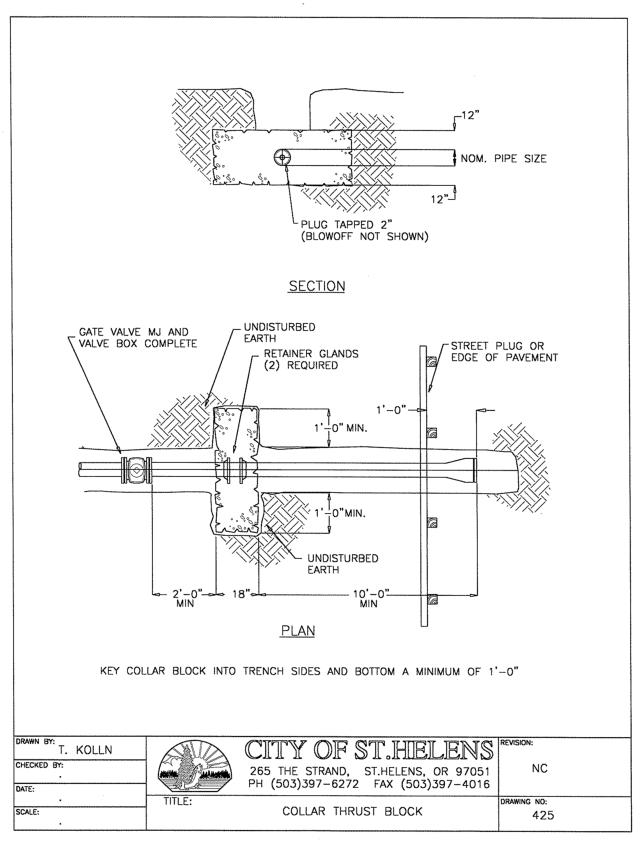

Collar Thrust Block |
|
430 |

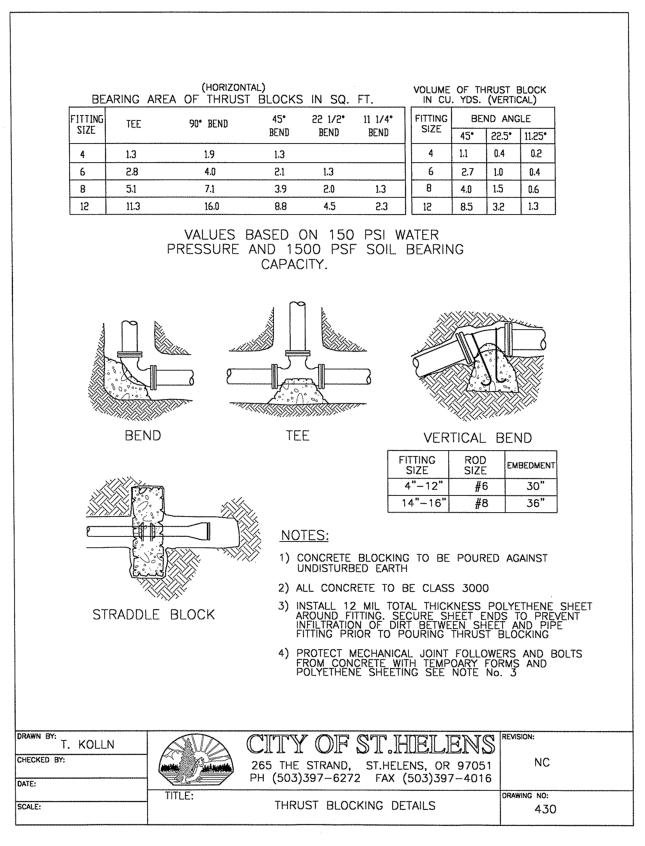

Thrust Blocking Details |
